Makeability Lab Library

A modular JavaScript library for mathematical computations, graphics utilities, and interactive visualizations developed by the Makeability Lab at the University of Washington.

Features

The library is organized into three main modules:

Each module can be imported independently or as a complete bundle, allowing for optimized loading based on your needs.

Quick Start (CDN)

The easiest way to use this library is via CDN. No installation required - just import directly in your HTML or JavaScript:

<!-- In your HTML file -->
<script type="module">
  // Import specific modules
  import { Vector, lerp } from 'https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.math.js';
  import { lerpColor } from 'https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.graphics.js';
  import { MakeabilityLabLogo } from 'https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.logo.js';

  // Or import everything
  import * as Makelab from 'https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.all.js';

  // Use the library
  const v = new Vector(10, 20);
  console.log(v.magnitude());
</script>

CDN Usage Options

Using jsdelivr CDN

The library is available via the jsdelivr CDN, which automatically serves files from this GitHub repository:

// Base URL pattern
https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/{filename}

// Specific modules
https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.math.js
https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.graphics.js
https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.logo.js
https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.all.js

// Minified versions (recommended for production)
https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.math.min.js
https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.graphics.min.js
https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.logo.min.js
https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.all.min.js

Version Pinning

For production use, it’s recommended to pin to a specific commit or tag instead of @main:

// Pin to a specific version tag
import { Vector } from 'https://cdn.jsdelivr.net/gh/makeabilitylab/js@v1.0.0/dist/makelab.math.min.js';

// Pin to a specific commit
import { Vector } from 'https://cdn.jsdelivr.net/gh/makeabilitylab/js@5baeb55/dist/makelab.math.min.js';

Complete CDN Example

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>Makelab Library CDN Example</title>
</head>
<body>
  <canvas id="canvas" width="800" height="600"></canvas>

  <script type="module">
    // Import from CDN
    import { Vector, lerp } from 'https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.math.min.js';
    import { LineSegment, lerpColor } from 'https://cdn.jsdelivr.net/gh/makeabilitylab/js@main/dist/makelab.graphics.min.js';

    const canvas = document.getElementById('canvas');
    const ctx = canvas.getContext('2d');

    // Create and draw a line
    const line = new LineSegment(100, 100, 700, 500);
    line.draw(ctx);

    // Create vectors
    const v1 = new Vector(10, 20);
    const v2 = new Vector(30, 40);
    console.log('Vector sum:', v1.add(v2));
  </script>
</body>
</html>

Local Installation

For local development or when you need to modify the library:

Prerequisites

Install Dependencies

npm install

This will install all required dependencies including:

Development Setup

Project Structure

js/
├── src/
│   ├── lib/
│   │   ├── math/           # Math utilities and Vector class
│   │   ├── graphics/       # Graphics utilities (colors, line segments)
│   │   └── logo/           # Makeability Lab logo components
│   └── apps/               # Example applications
├── dist/                   # Built output files
├── rollup.config.js        # Rollup bundler configuration
└── package.json

Available Modules

Math Module

Graphics Module

Logo Module

Building the Distribution

The project uses Rollup to create optimized bundles. The build process generates both standard and minified versions of each module.

Build All Modules

npx rollup -c rollup.config.js

This command generates the following files in the dist/ directory:

Module Standard Minified
Math makelab.math.js makelab.math.min.js
Graphics makelab.graphics.js makelab.graphics.min.js
Logo makelab.logo.js makelab.logo.min.js
All (Complete) makelab.all.js makelab.all.min.js

Build Details

Production Build

For production use, reference the minified versions:

<script type="module">
  import { Vector, lerp } from './dist/makelab.math.min.js';
  import { lerpColor, LineSegment } from './dist/makelab.graphics.min.js';
  // Or import everything
  import * from './dist/makelab.all.min.js';
</script>

Versioning and Releases

This library follows Semantic Versioning (SemVer): MAJOR.MINOR.PATCH

Creating a New Release

When you’re ready to release a new version:

1. Update the Version Number

Edit package.json and update the version number:

{
  "name": "makelab-lib",
  "version": "1.2.3",  // Update this
  ...
}

2. Build the Distribution Files

npx rollup -c rollup.config.js

This ensures all dist/ files are up to date with your latest changes.

3. Commit Your Changes

git add .
git commit -m "Release v1.2.3: Brief description of changes"
git push origin main

4. Create a GitHub Release

Create a new release on GitHub to tag the version:

  1. Go to your repository on GitHub
  2. Click on “Releases” (in the right sidebar)
  3. Click “Create a new release”
  4. Tag version: Enter the version number (e.g., v1.2.3)
  5. Target: Select main branch
  6. Release title: v1.2.3 or descriptive title
  7. Description: Describe what’s new, changed, or fixed
  8. Click “Publish release”

5. Verify CDN Access

After creating the release, verify that the CDN serves the new version:

// Test the new version tag
import { Vector } from 'https://cdn.jsdelivr.net/gh/makeabilitylab/js@v1.2.3/dist/makelab.math.min.js';

The jsdelivr CDN may take a few minutes to update. You can check the status at:

https://www.jsdelivr.com/package/gh/makeabilitylab/js

Version Pinning Best Practices

For users of the library:

Release Checklist

Before creating a release, ensure:

Usage

Importing Individual Modules (Local Files)

// Import only what you need
import { Vector, lerp } from './dist/makelab.math.js';
import { lerpColor } from './dist/makelab.graphics.js';

// Create a vector
const v1 = new Vector(10, 20);
const v2 = new Vector(30, 40);
const sum = v1.add(v2);

// Interpolate between values
const midpoint = lerp(0, 100, 0.5); // Returns 50

// Interpolate between colors
const blendedColor = lerpColor('#FF0000', '#0000FF', 0.5);

Importing the Complete Library

import * as Makelab from './dist/makelab.all.js';

const vec = new Makelab.Vector(5, 10);
const line = new Makelab.LineSegment(0, 0, 100, 100);

Development Imports (Source Files)

During development, you can import directly from source files:

import { Vector } from './src/lib/math/vector.js';
import { LineSegment } from './src/lib/graphics/line-segment.js';

Development Workflow

  1. Make Changes - Edit files in the src/ directory
  2. Test Changes - Create test applications in src/apps/
  3. Build - Run npx rollup -c rollup.config.js to generate distribution files
  4. Verify - Test the built files in dist/
  5. Commit - Commit both source and built files (the CDN serves from the repo)

Watch Mode (Optional)

For automatic rebuilds during development, you can run Rollup in watch mode:

npx rollup -c rollup.config.js --watch

This will automatically rebuild the distribution files whenever source files change.

Important Note for Contributors

Since the library is served via CDN directly from this GitHub repository, it’s important to:

  1. Always run the build process before committing
  2. Commit both source files and the generated dist/ files
  3. The dist/ directory should NOT be in .gitignore
  4. Test the CDN links after pushing to ensure they work correctly

API Documentation

Math Module

Vector Class

const v = new Vector(x, y)
v.add(other)           // Vector addition
v.sub(other)           // Vector subtraction
v.mult(scalar)         // Scalar multiplication
v.magnitude()          // Get magnitude
v.normalize()          // Normalize to unit vector
v.heading()            // Get angle in radians

Math Utilities

convertToRadians(degrees)    // Degrees to radians
convertToDegrees(radians)    // Radians to degrees
lerp(start, stop, amount)    // Linear interpolation
random(min, max)             // Random number generation

Graphics Module

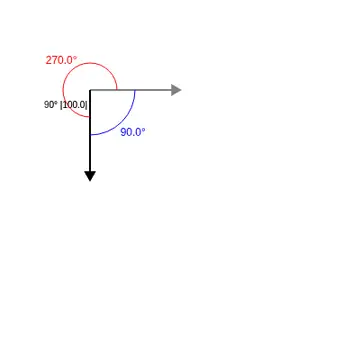

LineSegment Class

const line = new LineSegment(x1, y1, x2, y2)
line.draw(context)              // Draw to canvas context
line.intersects(otherLine)      // Check intersection
line.getIntersection(otherLine) // Get intersection point

Color Utilities

lerpColor(color1, color2, amount)        // Blend two colors
convertColorStringToObject(colorString)  // Parse color to RGB

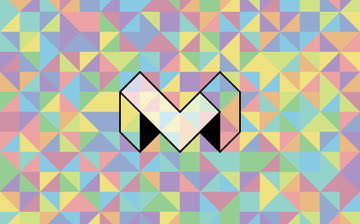

Logo Module

Specialized components for rendering and animating the Makeability Lab logo. See source files for detailed API documentation.

Contributing

Contributions are welcome! Please follow these guidelines:

  1. Fork the repository
  2. Create a feature branch
  3. Make your changes
  4. Test thoroughly
  5. Run the build process (npx rollup -c rollup.config.js)
  6. Commit both source and dist files
  7. Submit a pull request

License

MIT License - Copyright (c) 2024 UW Makeability Lab

See LICENSE file for full details.

Author

Jon E. Froehlich

Support

For questions, issues, or contributions, please visit the project repository.
